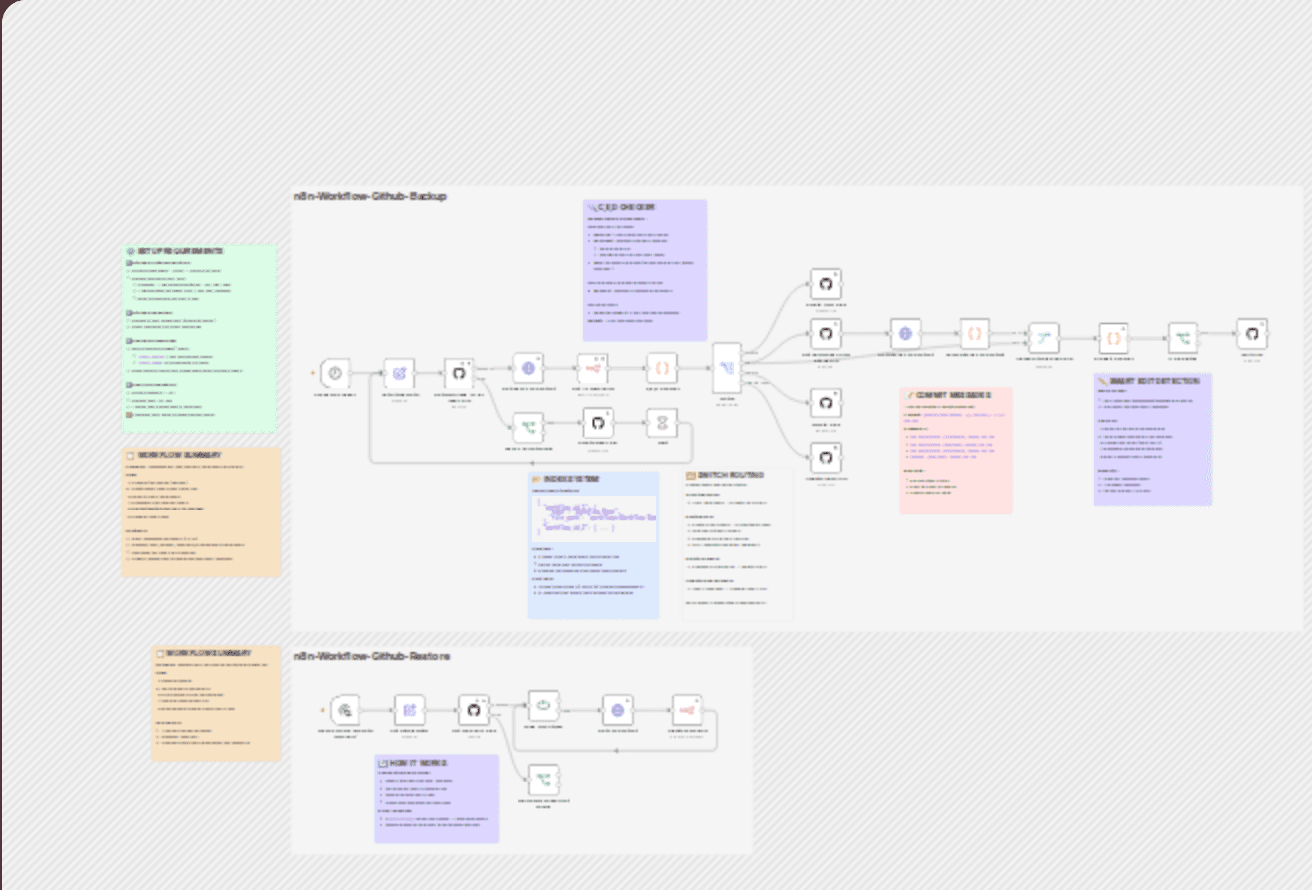

Back up and restore n8n workflows with GitHub sync

n8n Workflows GitHub Manager > A comprehensive n8n workflow that provides complete bidirectional sync between your n8n instance and GitHub - automatically backs up all your workflows with intelligent change detection AND restores them when needed. This workflow combines two powerful features in one: Backup: Automatically detects new, edited, renamed, and deleted workflows in your n8n instance, then syncs them to GitHub with smart commit messages and an index tracking system. Restore: Easily restore all workflows from your GitHub repository back to n8n - perfect for disaster recovery, new instance setup, or environment cloning. --- How It Works 🔄 Backup Mode (Automatic) 1. Trigger: Runs automatically every day at 7 PM UTC (or manually when triggered via the Schedule Trigger). 2. Get/Create Index: Attempts to fetch index.json from your GitHub repository. If found → Downloads and parses it. If not found → Creates a new empty index file and waits 3 seconds for GitHub to process. 3. Fetch All Workflows: Retrieves all workflows from your n8n instance via the n8n API. 4. Smart Comparison: The "C,E,D Checker" (Create, Edit, Delete) analyzes differences: CREATE → New workflow not in index. RENAME → Workflow name changed (deletes old file, creates new one). EDIT → Existing workflow (flagged for content comparison). DELETE → Workflow removed from n8n but still in GitHub. INDEX UPDATE → Triggered if any changes detected. 5. Route Actions: Switch node routes each action to the appropriate branch: Create Branch → Creates new workflow files in GitHub. Edit Branch → Performs smart edit detection: Fetches current file from GitHub. Compares GitHub version vs. n8n version (normalized JSON). Only commits if content actually changed (avoids timestamp-only updates). Delete Branch → Removes workflow files from GitHub. Update Index Branch → Updates index.json with latest mappings. 6. Commit Messages: Auto-generated with format: [Workflow Name] (Action) YYYY-MM-DD ⬇️ Restore Mode (Manual) 1. Trigger: Manually execute via the "When clicking 'Execute workflow'" manual trigger. 2. Set GitHub Details: Configure your repository owner and name. 3. List Workflow Files: Fetches all workflow JSON files from the workflows/ folder in your GitHub repository. If folder not found → Workflow stops gracefully (ensure backup ran at least once first). 4. Loop Through Files: Sequentially processes each workflow file: Downloads the JSON content from GitHub. Creates the workflow in your n8n instance via the n8n API. 5. Sequential Processing: Handles one workflow at a time to prevent conflicts and respect rate limits. 6. Result: All workflows from GitHub are restored to your n8n instance. --- Requirements GitHub OAuth2 Credentials: Go to GitHub Developer Settings → OAuth Apps → New OAuth App. Set Authorization callback URL to your n8n instance URL (e.g., Copy Client ID and Client Secret. Add as OAuth2 credential in n8n (Credentials → New → GitHub OAuth2). GitHub Repository: Create a new repository (public or private). Note your username (repo owner) and repository name. n8n API Credentials: In your n8n instance → Settings → API → Create new API key. Add as n8n API credential in the workflow. --- How to Use Initial Setup 1. Import the Workflow: Copy the provided JSON file. In your n8n instance → click Import Workflow → paste or upload the JSON. 2. Create GitHub Repository: Go to GitHub → Create a new repository (e.g., n8n-workflows-manager). Leave it empty (no README, no .gitignore). 3. Set Up GitHub OAuth2: In n8n → Credentials → New → GitHub OAuth2. Fill in: Client ID → from GitHub OAuth App. Client Secret → from GitHub OAuth App. Click Connect my account and authorize. 4. Set Up n8n API Credentials: In n8n → Settings → API → Create new API key. Copy the key. In workflow → Credentials → New → n8n API → paste the key. Set Base URL to your n8n instance (e.g., 5. Configure Repository Details: Find both "Set Github Data" nodes in the workflow (one for backup, one for restore). Edit the assignments in each: repoowner: Replace "your-github-username" with your GitHub username. reponame: Replace "your-github-repository-name" with your repository name. 6. Connect Credentials to Nodes: Open each GitHub node (there are 8 total): Backup section: Create Index File, Get Download Url for Index File, Create New Files, Update Index File, Get Download Url for Github File, Delete Files, Edit Files Restore section: List Workflow Files Set Credential for GitHub OAuth2 to the one you created. Open the n8n API nodes (Get All Workflows, Create Workflow) → Set Credential for n8n API to the one you created. Using Backup Mode 7. Test Backup: Click the "Schedule Trigger" node at the top of the workflow. Click "Test workflow". Monitor execution → All nodes in the backup section should turn green. Check your GitHub repository → Should see index.json and workflows/ folder with your workflows. 8. Activate for Auto Backup: Once tested successfully, toggle the workflow to Active. It will now run automatically every day at 7 PM UTC. Using Restore Mode 9. Test Restore (only after you have backups in GitHub): Click the "When clicking 'Execute workflow'" manual trigger node at the bottom. Click "Test workflow". Monitor execution → All nodes in the restore section should turn green. Check your n8n workflows list → All workflows from GitHub should now be present. 10. When to Use Restore: Setting up a new n8n instance. Recovering after data loss. Cloning workflows to another environment. Rolling back to a previous state (manually download older commits from GitHub first). --- Important Notes Smart Edit Detection: Uses normalized JSON comparison to avoid unnecessary commits when only timestamps change. Credentials: Credential IDs are included but not actual secrets. You must reconnect credentials after restore. Restored Workflows: Created as new workflows with new IDs in inactive state by default. File Structure: index.json tracks all workflows; workflows/ folder contains individual workflow files. Security: Use a private repository if workflows contain sensitive data. Credential secrets are never backed up. --- Customization Change Schedule: Edit "Schedule Trigger" node → modify triggerAtHour (default: 19 = 7 PM UTC) File Path: Modify filePath in GitHub nodes to change storage location Notifications: Add email/notification nodes to get alerts on backup completion Selective Restore: Add IF nodes to filter which workflows to restore Multiple Repos: Duplicate workflow for separate prod/dev backups --- Author: Muhammad Anas Farooq
